Ventline V3094-603-00 - E-Z Lift Ventadome Trailer Roof Vent w/ 12V Fan - Manual Lift - Smoke

This roof vent has a single-speed fan that circulates air, and it opens quickly and easily with the spring-loaded handle. The handle locks the translucent, wedge-shaped dome into 10 different positions. Install kit and garnish sold separately.Features:

Roof vent has a fan that pushes stale air out of your RV, camper, or enclosed trailer

Vent allows air to circulate while your RV remains locked and secure

12V DC, 8-blade, single-speed fan

On/off switch is mounted to ventFan rotates counterclockwise

Easy-to-use handle lets you quickly open and close the vent from inside your RV

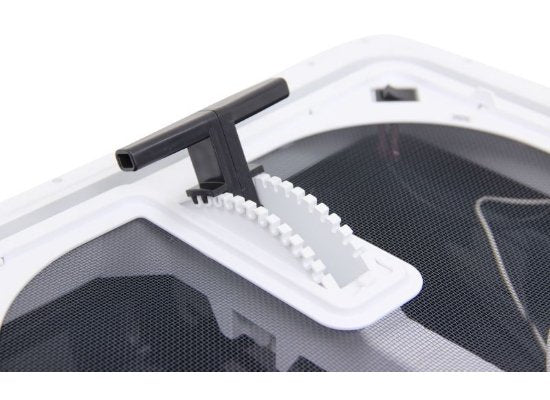

Spring-loaded handle locks into 10 different positionsNo gears - opens vent faster than a standard crank handle or hand knobErgonomic T-shape is easy to grip

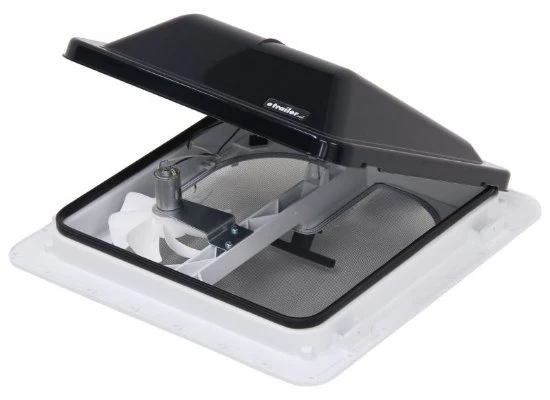

Aerodynamic, wedge-shaped dome (or lid) is made of durable smoke-colored polypropylene

Translucent dome allows some light through

Polar white screen snaps out for easy cleaning
Vinyl weather seal helps keep water out when vent is closed
Manual lift design
White, 1/4" thick mounting flange is built in

UV-resistant, long-lasting specialty polymer plastic constructionSmooth edges won't cut you during installationWorks well with all roofing materials

2-Wire design

Black wire is powerWhite wire is ground

Interior trim piece (or garnish) and installation kit sold separately
4 Mounting points on flange allow for installation of a vent cover (sold separately)
Made in the USA

Specs:

Rough opening size: 14-1/4" wide x 14-1/4" long
Overall dimensions (outside of flange to outside of flange): 16-1/2" wide x 16-1/2" long
Vent extends above roof:
4" When closed
9-1/2" When fully open
Overall fan diameter: 5"
Fan shaft diameter: 0.091"
Fan capacity: 100 CFM
Power draw: 1.2 amps
Limited 2-year warranty
